| RPM Reference: | SH2024-0212 |
| Manufacturer: | Allu Finland OY |
| Type: | Screening bucket |
| Model: | DH 4-23 |
| Year: | 2018 |
| Condition: | Good Working Order |
| Price: | £25,000.00 |
| Location: | Co Durham |
Description

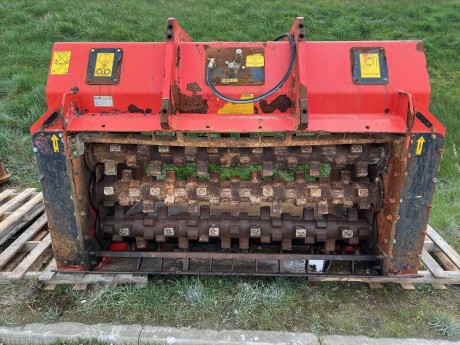

The Allu DS 4-27 a heavy-duty screening bucket for excavators (30-35 ton) and wheel loaders (14-22 ton), weighing around 3,020 kg, with a ~3.2 m³ volume, designed to screen, crush, mix, and aerate materials like soil, compost, and demolition waste, operating efficiently with 120-200 L/min oil flow and featuring replaceable flails and a self-cleaning TS (Transformer Screening) system.
Key Specifications
- Carrier Machine: 30 – 35-ton Excavator / 14 – 22-ton Wheel Loader
- Weight (Bucket Only): 3,020 kg
- Bucket Volume (Cubic Capacity): 2.4 – 3.2 m³ (approx.)
- Oil Flow: 120 – 200 L/min (or 190 – 315 L/min for some configurations)
- Operating Pressure: Max 200 – 280 Bar
- Screen Area: 2.3 m² (approx.)
- Cutting Width: 2,300 mm (2.3 meters)
- Features: 4 mixing/crushing shafts, replaceable flails, TS (Transformer Screening) system, directional valve, drain line eliminator.
Materials Handled
- Forestry
- Green
- Green Waste Compost
- Recycled Aggregates
Industry Sectors
- Green Waste Processing
- Landscapers
- Remediation
