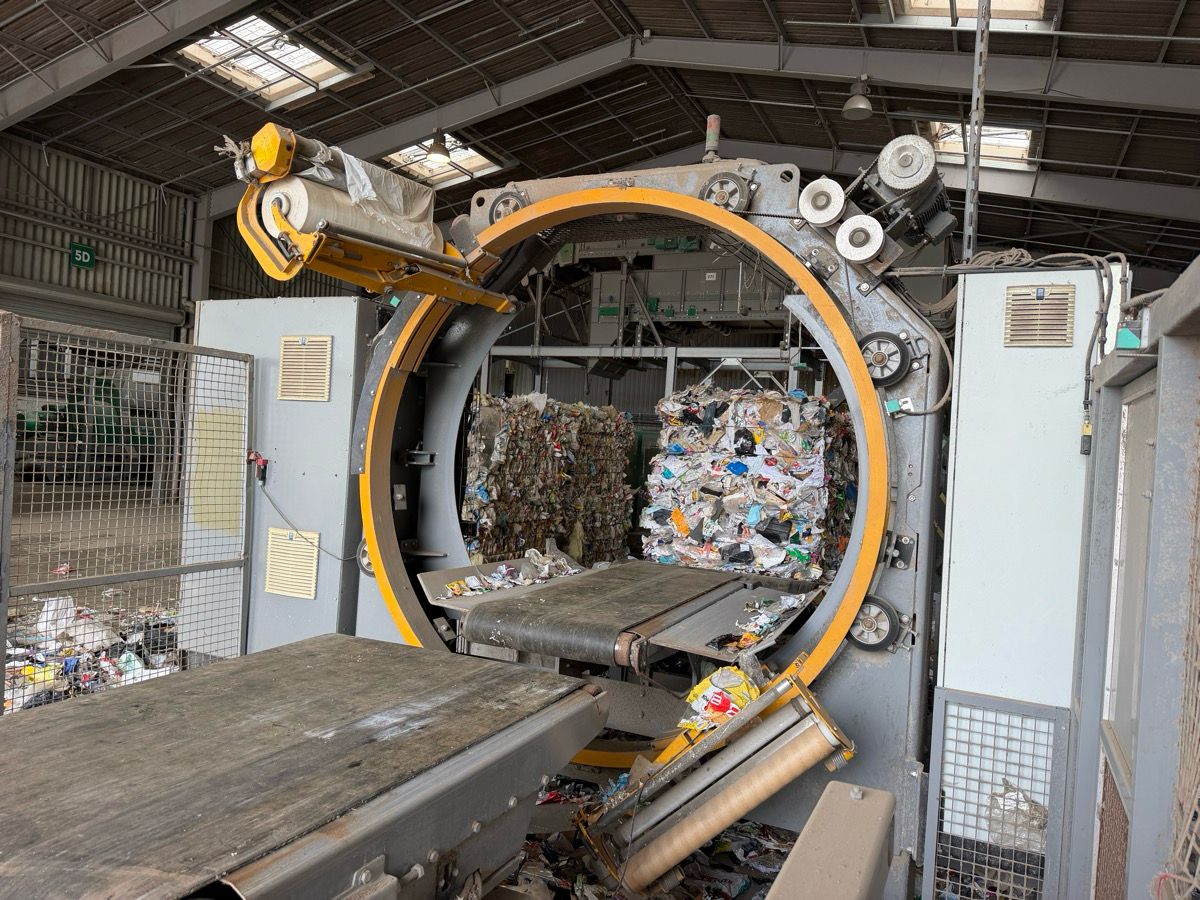

Automatic Bale Wrapper (Cross Wrap CWD2200)

The Cross Wrap CWD2200 is a fully automatic bale wrapping system designed for integration with industrial baling lines. It automatically receives, positions, wraps and discharges finished bales, providing an efficient solution for containing baled waste and recyclable materials.

Featuring PLC-controlled operation with a Siemens SIMATIC touchscreen HMI, the machine offers multiple wrapping programmes and adjustable film settings to suit different operating requirements. The system can also communicate with the baler, automatically stopping the feed when there is insufficient capacity to receive another bale.

Key Features

• Manufacturer: Cross Wrap
• Model: CWD2200
• Fully automatic bale wrapping system
• Designed for integration with industrial balers
• Automatic bale receiving, positioning, wrapping and discharge
• PLC-controlled operation
• Siemens SIMATIC touchscreen HMI
• Automatic and manual operating modes
• 4 selectable wrapping programmes
• Heavy cross wrap, standard cross wrap, vertical wrap or pass-through
• Adjustable horizontal and vertical film layers
• Automatic rotating wrapping ring
• Rotating bale table
• Infeed and storage/outfeed conveyor arrangement
• Hydraulic power unit
• Adjustable conveyor and wrapping speeds
• Energy-saving hydraulic mode
• Uses 500 mm or 750 mm wrapping film, depending on configuration
• Maximum film roll diameter: 280 mm
• Approx. 50% film pre-stretch
• Emergency stops and safety guarding
• Automatic fault and alarm monitoring
• Machine counter showing approximately 57,724 wrapped bales

• C&D Waste
• C&I Waste
• Cardboard
• Comingled Material Dry / Dry Mixed Recycling
• Paper
• Plastics
• RDF/SRF

• Plastics Recycling
• Recycling Plants
• Waste Management
