| RPM Reference: | PC2026-0090 |

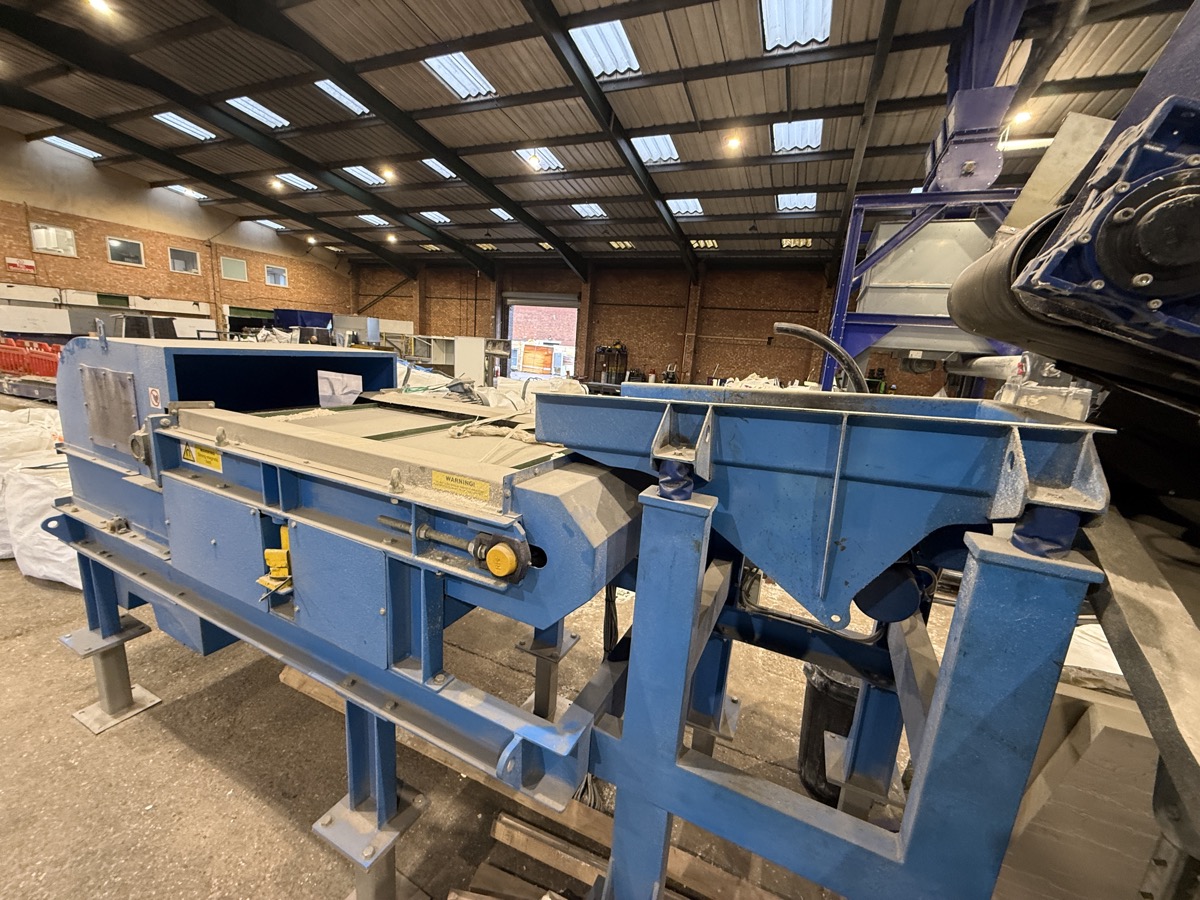

| Manufacturer: | Bunting |
| Type: | ECS |
| Model: | EC575R-VF-CP-41525 |
| Year: | 2024 |
| Condition: | Good Working Order |
| Price: | POA |
Description
Model
EC575R-VF-CP-41525
Belt Width
575 mm (approx. 22–24 inch)
Rotor Type
R-Type high-intensity rare earth magnetic rotor
Rotor Speed
Approx. 2,000 – 3,000 RPM (adjustable)
Magnet Type
Neodymium (NdFeB) rare earth magnets
Magnetic Poles
Approx. 12 pole rotor configuration
Drive System
Variable Frequency Drives (VFD) for rotor and belt
Frame Design
Cantilever pulley frame for easy belt replacement
Belt Type
Endless urethane separation belt
Belt Speed
Approx. 1 – 3 m/s (adjustable)
Electrical Supply
415 V / 3 Phase / 50 Hz
Typical Particle Size
20 mm – 150 mm
Typical Throughput
Approx. 2 – 10 tonnes per hour (depending on material)
Recovered Metals
Aluminium, copper, brass, zinc, die-cast alloys
Typical Applications
MRF recycling lines, WEEE recycling, plastics recovery, glass recycling, C&D waste
Installation Position
Installed after ferrous magnet, before optical or density separation
Materials Handled
- C&D Waste
- Glass Recycling
- Scrap Metal
Industry Sectors
- Glass Recycling Plants
- Recycling Plants
- Scrap Metal
- Waste Management
