Complete RDF/SRF Baling & Wrapping Line – unoTech UPAMAT 150H5 & Cross Wrap CW2200

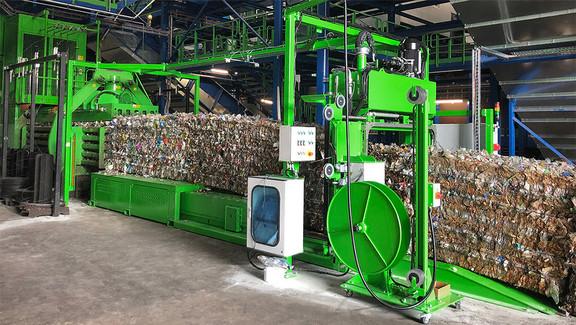

Photos are currently for illustration purposes – not actual machines.

This complete industrial baling and wrapping line is designed for high-volume processing of Refuse Derived Fuel (RDF), Solid Recovered Fuel (SRF), municipal waste and selected recyclable materials. Combining a heavy-duty unoTech UPAMAT 150H5 channel baling press, an inclined chain-belt feed conveyor and a Cross Wrap CW2200 automatic wrapping system, the plant provides an integrated solution for producing dense, securely wrapped bales suitable for storage, handling and transportation.

Material is delivered into the baling press via the heavy-duty conveyor, where it is compressed into high-density bales weighing approximately 1,100–1,700 kg. The bales are automatically tied using PET strapping before transferring to the Cross Wrap system for film wrapping and controlled discharge. With a specified throughput of up to 70 tonnes per hour, depending on material bulk density, this line is particularly suitable for waste processing facilities, RDF/SRF producers and recycling operators requiring efficient, continuous baling and wrapping operations.

Key Features & Technical Specifications (See Spec Sheet for further info)

1. unoTech UPAMAT 150H5 Channel Baling Press

• Manufacturer: unoTech GmbH, Germany

• Model: UPAMAT 150H5

• Heavy-duty industrial channel baling press

• Designed for high-volume RDF/SRF and waste processing

• Automatic 5-wire horizontal PET tying system

• Pressing force: 1,250 kN at 260 bar

• Maximum cutting force: 1,550 kN at 315 bar

• Throughput: up to 70 tonnes per hour, depending on material density

• Operating volumetric capacity: up to 880 m³/hour

• Maximum nominal volumetric capacity: 1,400 m³/hour

• Bale weight: approximately 1,100–1,700 kg

• Bale length: up to 2,000 mm

• Bale channel dimensions: 1,100 mm × 1,100 mm

• Feed opening: 2,000 mm × 1,020 mm

• Three 75 kW hydraulic pump drives

• Three axial piston pumps, specified flow 410 litres/minute

• Siemens S7-1500 programmable control system

• 10 mm HARDOX wear protection to press-box side walls and floor

• 250 kN material stamper

• Eight 230 kg PET strapping reels with unreeling equipment

• Automatic central lubrication point for pressure-plate rollers

• Remote diagnostics connection

• Large digital display

• Safety interlocks and Safe-Key transfer system

• Approximate dimensions: 15 m long × 3 m wide × 3.8 m high

• Approximate machine weight: 53 tonnes

2. Heavy-Duty Baler Feed Conveyor

• Model: KC3

• Heavy-duty chain-belt-on-slat conveyor

• Designed to provide continuous material feeding into the baler

• Conveyor centres length: 17.70 m

• Feed section: 4.00 m

• Horizontal section: 4.90 m

• Inclined section: 11.50 m

• Maximum incline: 30°

• Swan-neck section: 1.30 m

• Conveyor belt width: 1,750 mm

• Heavy-duty 400/3-ply rubber belt

• Conveyor speed: 0.27 m/sec

• 6-inch-pitch chain with 214 kN rated strength

• 500 mm and 900 mm high side valances

• Oil- and fat-resistant belt covers

• Raised-edge belt construction

• Steel support structure and guarding

• Safety grabwire

• Drop-out chute

• Loading backplate

• Manual drip-feed lubrication system

• Fabricated steel containment hood between conveyor and baling press

3. Cross Wrap CW2200 Automatic Bale Wrapping System

• Manufacturer: Cross Wrap

• Model: CW2200LW-750-1-10

• Fully automatic industrial bale wrapping line

• Designed to integrate directly with the unoTech baler

• Automatic transfer of compressed bales from the press

• Film wrapping for secure bale containment

• Integrated infeed belt conveyor, approximately 1,900 mm

• CW2200 main wrapping assembly

• Rotating wrapping table

• Hydraulic wrapping system

• Siemens S7 control system

• Four standard wrapping programmes

• Film monitoring system

• Automatic bale discharge

• 9.4 m discharge conveyor

• Discharge conveyor capacity: approximately five bales

• Remote connectivity via 3G/4G, network cable or wireless LAN

• Safety fencing and guarding

• Approximate line length: 16.89 m

• Overall width: 3.8 m

• Width with access doors open: 6.2 m

4. Complete Line Features

• Integrated material feeding, baling, tying, wrapping and discharge

• Designed for continuous industrial waste processing

• High-density bale production

• Automatic PET strapping and film wrapping

• Siemens PLC-based control systems

• Heavy-duty hydraulic equipment

• Integrated safety systems and guarding

• Suitable for large-scale recycling and waste treatment facilities

• Reduces loose material handling and improves bale containment

• Designed to support efficient storage and transportation of baled materials
