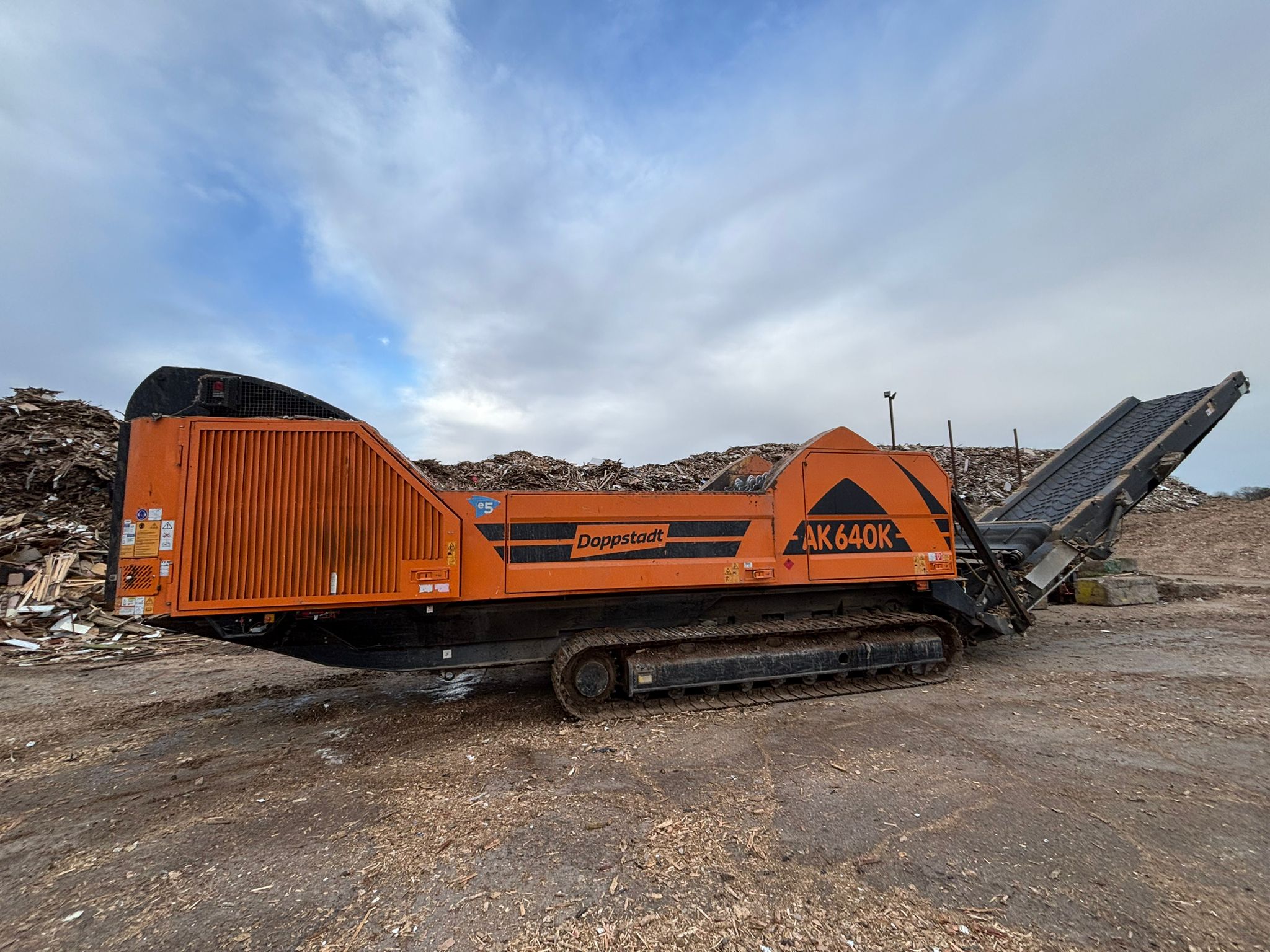

Doppstadt AK640K High Speed Shredder

Designed for heavy-duty applications such as waste wood, green waste, biomass, compost, large logs, pallets, etc.

DIMENSIONS

• Chassis: Track-mounted chassis

• Total weight (kg): 32,500

• Transport length (mm): 10,020

• Transport width (mm): 3,000

• Transport height (mm):

  • 3,390

  • 3,590 (with off-road chassis)

• Length (mm): 15,910

• Width (mm): 3,000

• Height (mm):

  • 5,090

  • 5,290 (with off-road chassis)

ENGINE

• Engine type: Diesel engine

• Manufacturer: MTU 6R1500

• Emissions standard:

  • Stage V

  • EPA Tier 4f

  • EIII A

• Motor power (kW / hp):

  • 480 / 652

  • 460 / 625 (EIII A)

• Tank capacity (l): 750

• Torque (Nm):

  • 3100 (Stage V)

  • 2900 (EIII A) at 1300 rpm

DISCHARGE CONVEYOR

• Width (mm): 1500

• Length (mm): 7500

• Belt speed (m/s): 2

• Discharge height (mm): 5090

FLAIL DRUM

• Width (mm): 1750

• Diameter (mm): 1120

• Rotational speed (rpm): 970–1140 (depending on engine speed)

• Number of flails / teeth: 36

FEED HOPPER

• Fill width (mm): 3500

• Loading height (mm):

  • 2220

  • 2420 (with off-road chassis)

• Infeed height (mm): 538
