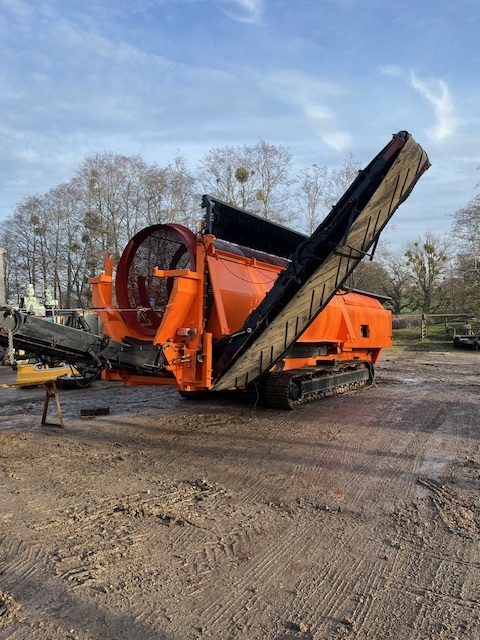

USED MACHINERY - Information
Email: sales@thinkrpm.co.uk Tel: 01792 702173
| RPM Reference: | PC2026-0098 |
| Manufacturer: | Doppstadt |
| Type: | Trommel |
| Model: | SM620K |
| Year: | 2009 |
| Hours: | 4100 |
| Condition: | Excellent |
| Price: | POA |
| Location: | Essex |
Description
Work completed includes the removal of all conveyors, followed by a full clean and repaint of the machine to factory colours.
All conveyors have been reconditioned and repaired, with new bearings and adjusters fitted where required. The Mercedes engine has been fully serviced and checked to ensure reliable operation.
The machine is supplied with a 20 mm drum installed, along with a spare 40 mm drum. It also includes both remote control and pendant control systems for operation.
Description
Mercedes-Benz OM 904 LA – 68kW (92hp)
Tracklaying Chassis with 2 Speeds
Fuel Tank – 300L
Drum Diameter – 2,000mm
Drum Length – 5,500mm
Drum Speed – 0–18 rpm
Hopper Volume – 5.0m³
Feeding Width – 3,780mm
Feeding Height – 2,890mm
Rear Discharge Conveyor – L 4,750mm × W 1,000mm – Speed 0.9 m/s
Side Discharge Conveyor – L 4,750mm × W 1,000mm – Speed 2.1 m/s
Transport Dimensions
Length – 11,450mm
Width – 3,000mm
Height – 3,700mm
Weight – 24,000kg
Materials Handled
- C&D Waste
- C&I Waste
- Green
- Green Waste Compost
- RDF/SRF
- Waste Fines
- Wood
Industry Sectors
- Forestry
- Green Waste Processing
- Wood Waste Processing
