USED MACHINERY - Information
Email: sales@thinkrpm.co.uk Tel: 01792 702173
| RPM Reference: | AM2026-0186 |
| Manufacturer: | Extec |
| Type: | S-5 |
| Model: | Tracked Mobile Screener |
| Year: | 2005 |
| Condition: | Good Working Order |
| Price: | £33,000.00 |
Description

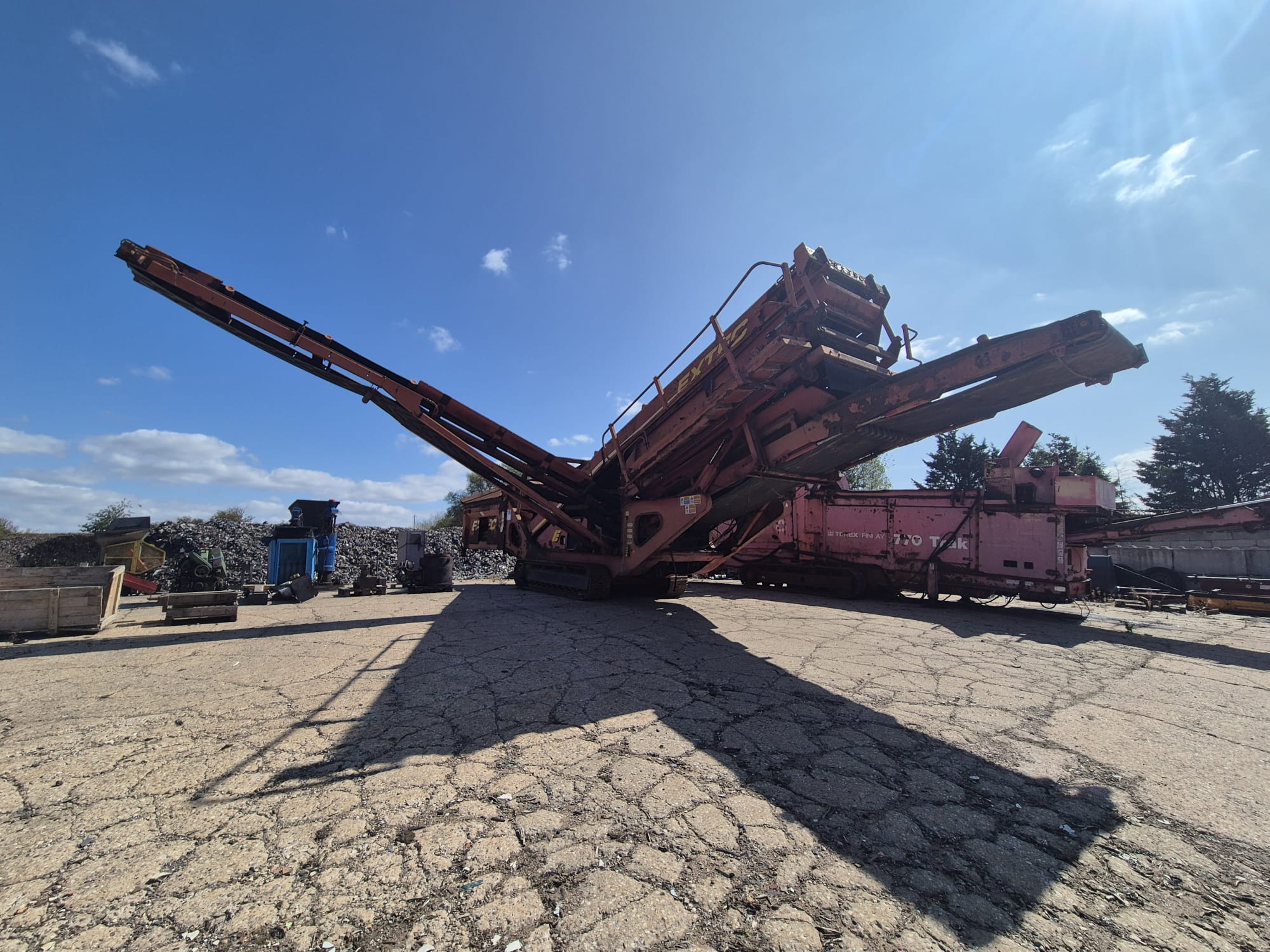

The S-5 was one of Extec’s larger high-production screening machines and uses its distinctive Doublescreen arrangement: two separate screen boxes, each independently driven and adjustable. The first removes fines and the second grades the remaining material, giving a large effective screening area.
3 way split – Other Screens Available
Features:-
- Screen arrangement: Extec Doublescreen
- Screen boxes: 2 × 2,439 × 1,524 mm (8′ × 5′)
- Typical engine: Deutz BF4M 2012 turbocharged
- Typical engine power: 74.9 kW / 100.4 hp @ 2,200 rpm
- Hydraulic drive
- Multiple folding discharge conveyors
- Designed as a high-throughput machine for producing accurately separated material fractions.
Transport Dimensions
- Length: 16.011 m
- Width: 2.590 m
- Height: 3.605 m
- Nominal machine weight: 28,000 kg
Materials Handled
- C&D Waste
- Sand & Gravel
Industry Sectors
- Mining & Quarrying
- Recycling Plants
- Waste Management
Contact us about Extec S-5 tracked mobile screener
