USED MACHINERY - Information
Email: sales@thinkrpm.co.uk Tel: 01792 702173
| RPM Reference: | PC2025-0124 |
| Manufacturer: | Screenpod |
| Type: | Trommel |
| Model: | TS514E |
| Year: | 2023 |
| Condition: | Excellent |
| Price: | POA |
Description

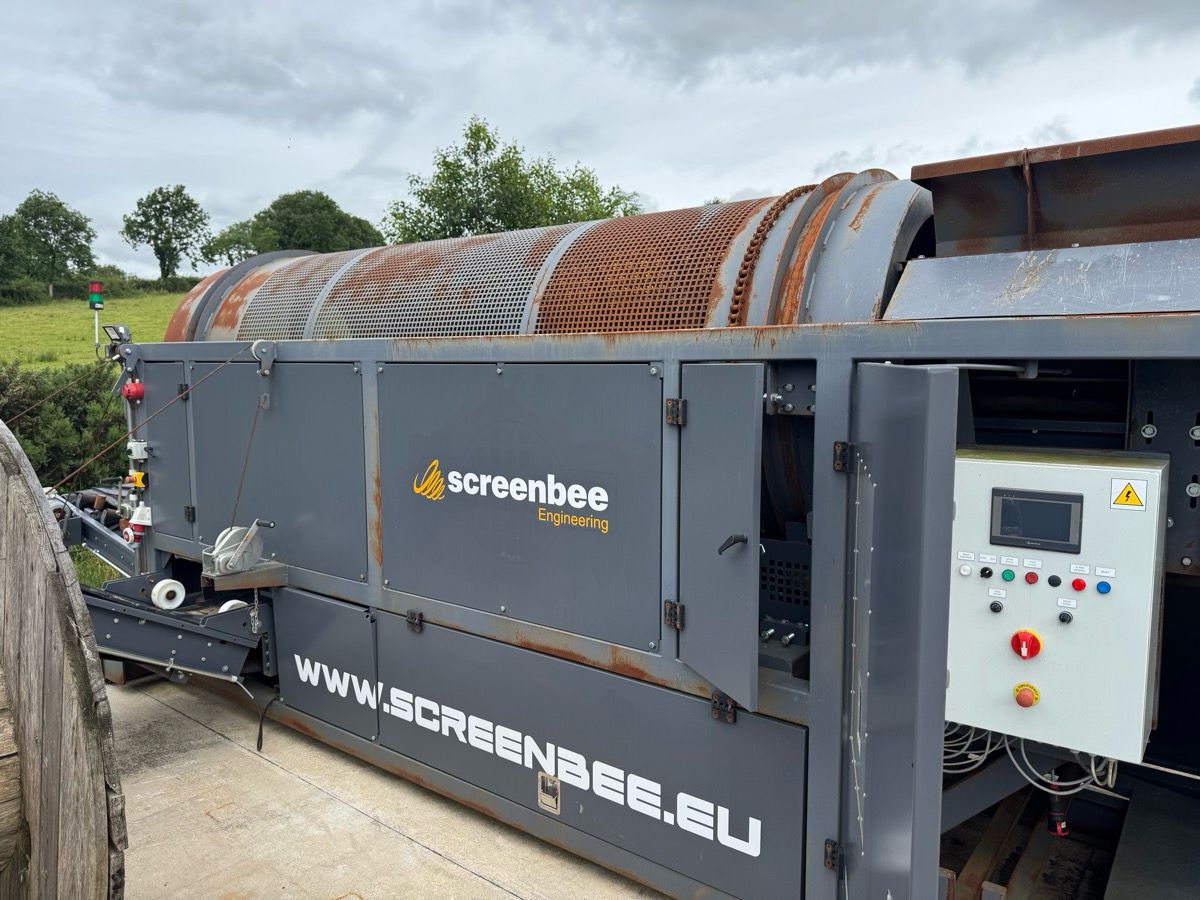

1. Screenpod Mobile (hook lift system) Rotary Screen including Hopper with loading conveyor belt
2. Three Conveyor belts for material output, two output conveyors belt are folding for transportation
TS514E Hybrid compact technical specification
Rotary Screen with screening drum:
Technical features:
Diameter: 1450mm
Screening length: 4300mm
Total length: 9200mm
Total width 4200mm
Transportation dimensions 7300 x 2200mm x 2650mm
Capacity (depending on material) 20-100 m3/h
Thickness of tracks 20mm
Screening cylinder thickness 6mm
Width of the track: 80mm
Wheels: 200 x 200 mm
Installed power: 8.5 KW
See Spec Sheet for further info
Materials Handled
- C&D Waste
- C&I Waste
- Green
- Green Waste Compost
- Waste Fines
- Wood
Industry Sectors
- Green Waste Processing
- Wood Waste Processing
Contact us about Screenpod Hybrid Compact TS514E Trommel
