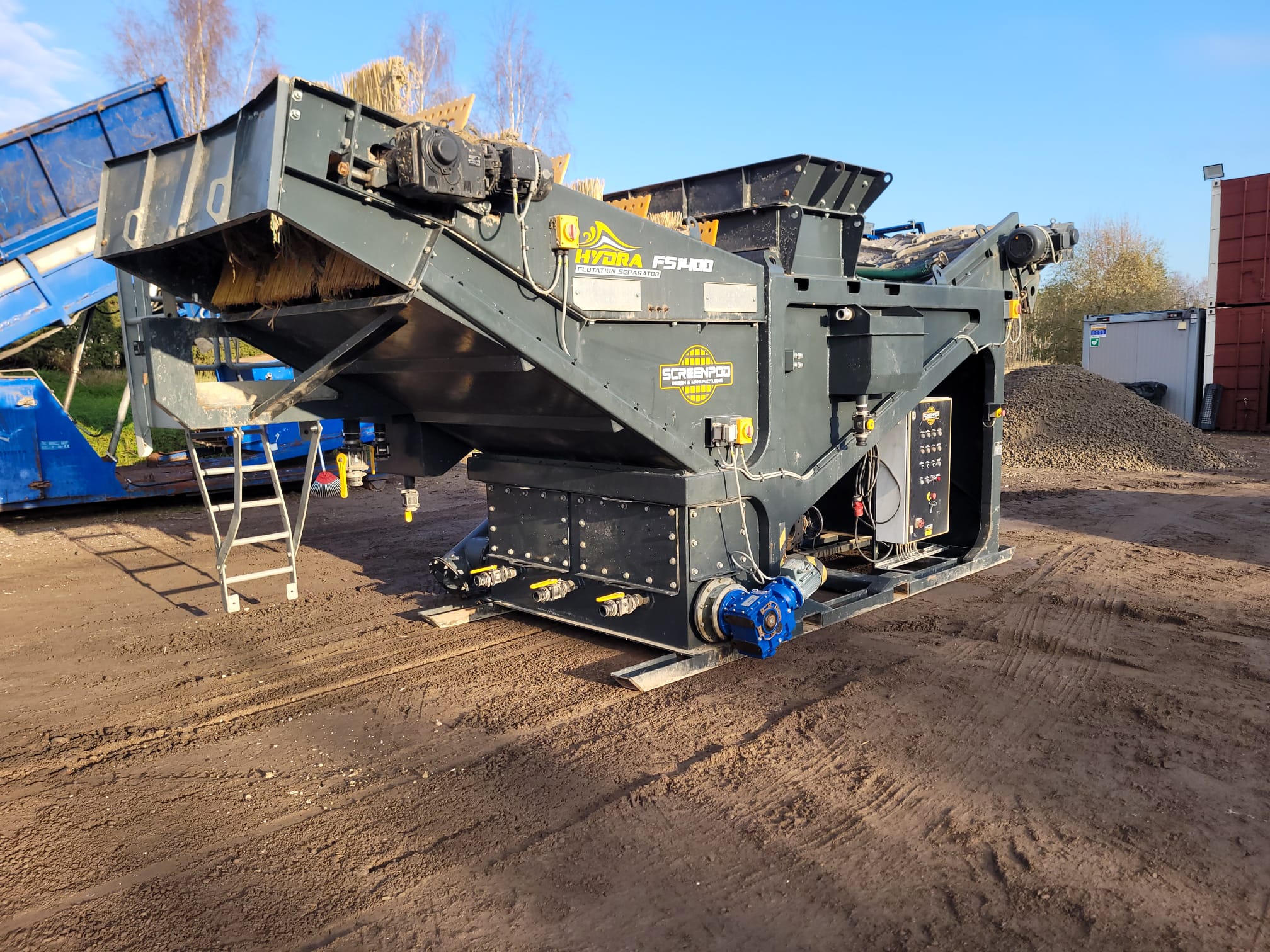

Screenpod Hydra FS1400

The Screenpod Hydra FS1400 Flotation Separator is a heavy-duty wet separation system designed to efficiently separate materials using water-based flotation technology. Built for demanding recycling applications, the FS1400 features a large-capacity water tank, dual heavy-duty augers for sediment removal and an integrated water recirculation system to improve separation efficiency. Capable of processing materials ranging from 10 mm to 150 mm, the machine incorporates a wear-lined feed hopper, heavy-duty discharge conveyors and a rotating brush cleaning system. Its robust construction, straightforward controls and accessible maintenance features make it a practical solution for recycling operators looking to improve material separation and recovery.

Key Features & Technical Specifications

• Manufacturer: Screenpod
• Model: Hydra FS1400
• Machine Type: Flotation Separator
• Material Size: 10–150 mm
• Transport Length: 6,600 mm
• Transport Width: 2,900 mm
• Transport Height: 2,800 mm
• Transport Weight: 7,000 kg (without water)
• Operating Weight: 11,000 kg (with water)
• Working Dimensions: 6,600 × 2,900 × 2,800 mm
• Heavies Conveyor: Heavy-duty chevron belt
• Heavies Discharge Height: 2,600 mm
• Brush Conveyor: Heavy-duty plain belt
• Brush Conveyor Discharge Height: 1,900 mm
• Water System: Integrated water recirculation with separation and sediment-control jets
• Sediment Removal: Dual heavy-duty augers
• Hopper: Wide, wear-plate-lined feed hopper
• Cleaning System: Rotary brush and conveyor spray bar
• Water Tank: Large capacity with automatic float-valve top-up
• Electrical Supply: 32A, 50/60Hz
• Controls: Electrical control panel with emergency stops
• Maintenance Access: Integrated walkways, ladders, removable tank doors and quick-release water hose couplings
