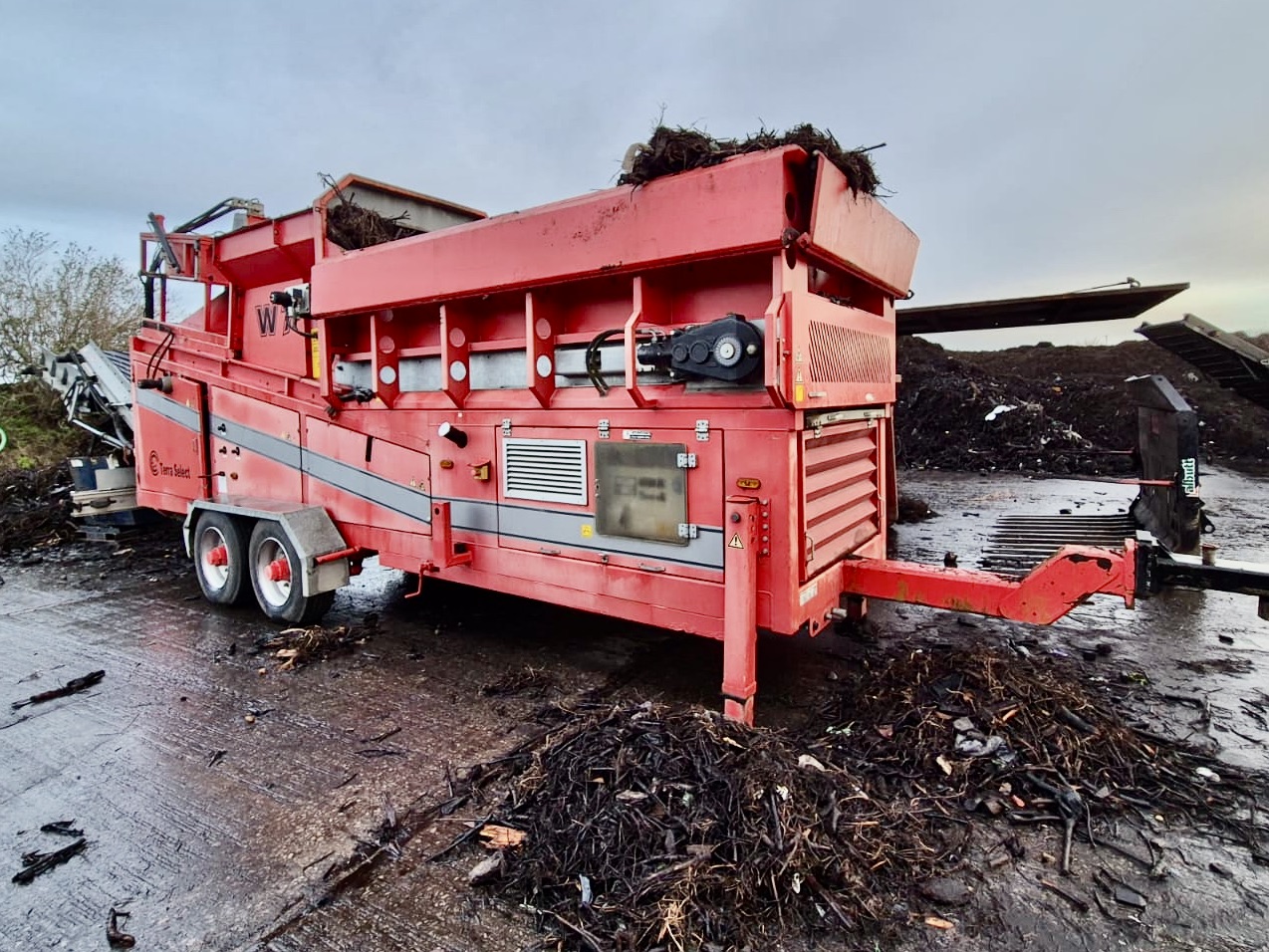

Terra Select W7 Windsifter

Overview

The Terra Select W7 Windsifter is a robust, mobile air-separation machine designed for efficient cleaning of screened compost, biomass, and similar materials. Using adjustable air separation, the W7 removes light contaminants such as plastics and paper while simultaneously separating heavier debris including stones and metals. Its compact transport dimensions and self-contained hopper make it ideal for both standalone operation and integration into existing screening lines.

FEED & HOPPER

• Infeed Hopper Capacity: ~4 m³
• Metering / Dosing Roller: Standard for controlled fee

CONVEYORS & SEPARATION BELTS

Acceleration / Feed Belt:
• Length – 3,400 mm
• Width – 1,340 mm

Discharge Belt:
• Length – 5,800 mm
• Width – 1,000 mm

Stone Separation Belt:
• Length – 2,100 mm
• Width – 1,000 m

AIR & SEPARATION SYSTEM

• Primary (Suction) Fan: 22 kW
• Secondary (Pressure) Fan: 5.5 kW

ENGINE & DRIVE

• Diesel Engine: Perkins diesel, ~62 kW output (Terra Select 1104 series)
• Hydraulic Drive: All main functions (airflow, conveyors) are hydraulically powered
• Fuel Tank Capacity: ~180 litres

Performance

• Cleaning capacity up to80 m³ per hour (material dependent)

Dimensions & Weight

• Transport length: approx. 10.6 m
• Transport width: 2.55 m
• Operating weight: approx. 12,000 kg

• Green
• Green Waste Compost
• Wood

• Green Waste Processing
• Landscapers
• Remediation
• Wood Waste Processing
